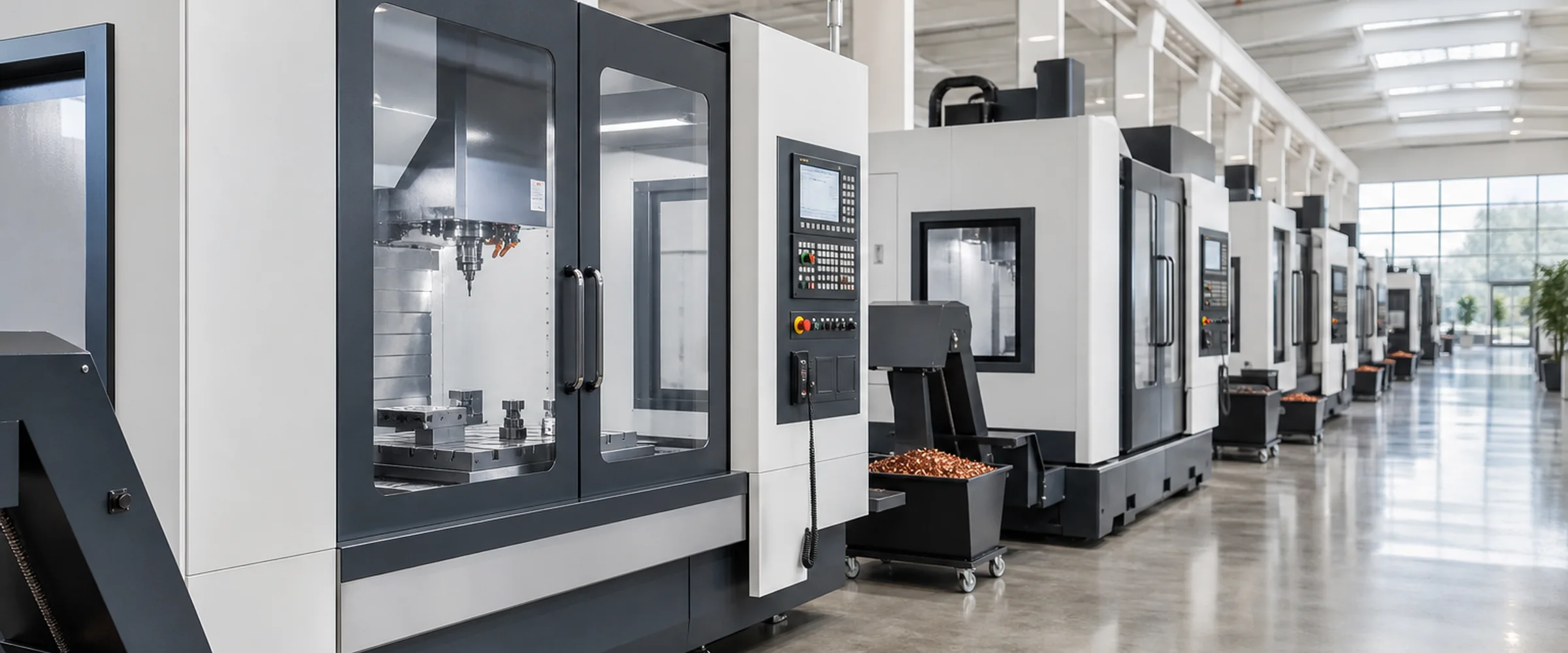

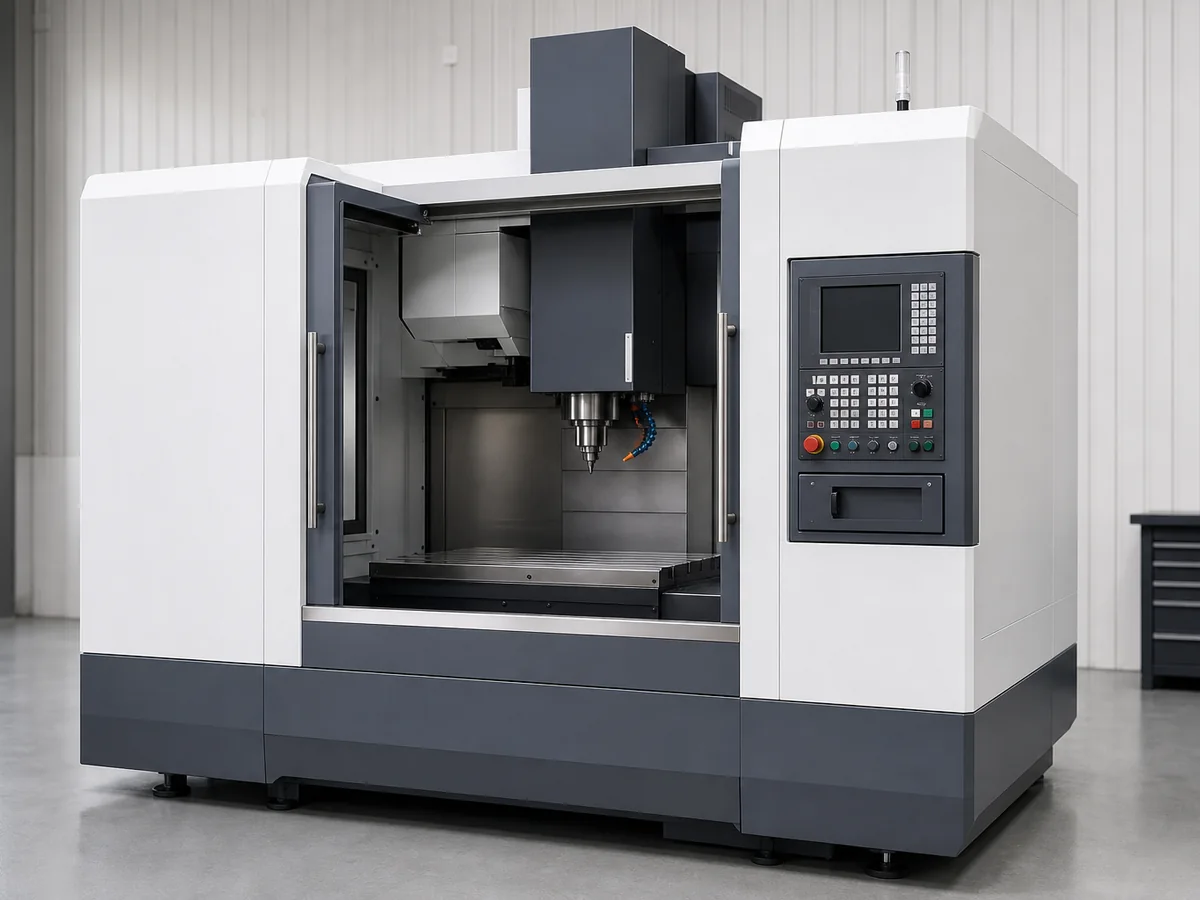

AM-V856
Vertical Machining Center
Box-column VMC on a stress-relieved casting. The workhorse for molds, fixtures and batch parts in steel and aluminum.
- X / Y / Z travel
- 850 / 560 / 560 mm
- Spindle
- 12,000 rpm BT40
- Tool magazine
- 24 stations
CNC Machine Manufacturer for Milling & Turning
AXISMILL designs and builds vertical machining centers, 5 axis CNC machines, CNC lathes and gantry mills in Suzhou. Every machine leaves the plant with a laser calibration report and a ball bar plot, ready to cut on day one.
- ±0.003 mmpositioning accuracy, laser verified
- 3,800+machines installed worldwide
- 52export countries with local support
- 21 yrsbuilding machine tools in Suzhou
Machining Centers & CNC Lathes We Build
Four platforms cover most milling and turning work. Each is configured to your parts, with Fanuc, Siemens or Mitsubishi control, and tested with a run-off you approve before shipment.

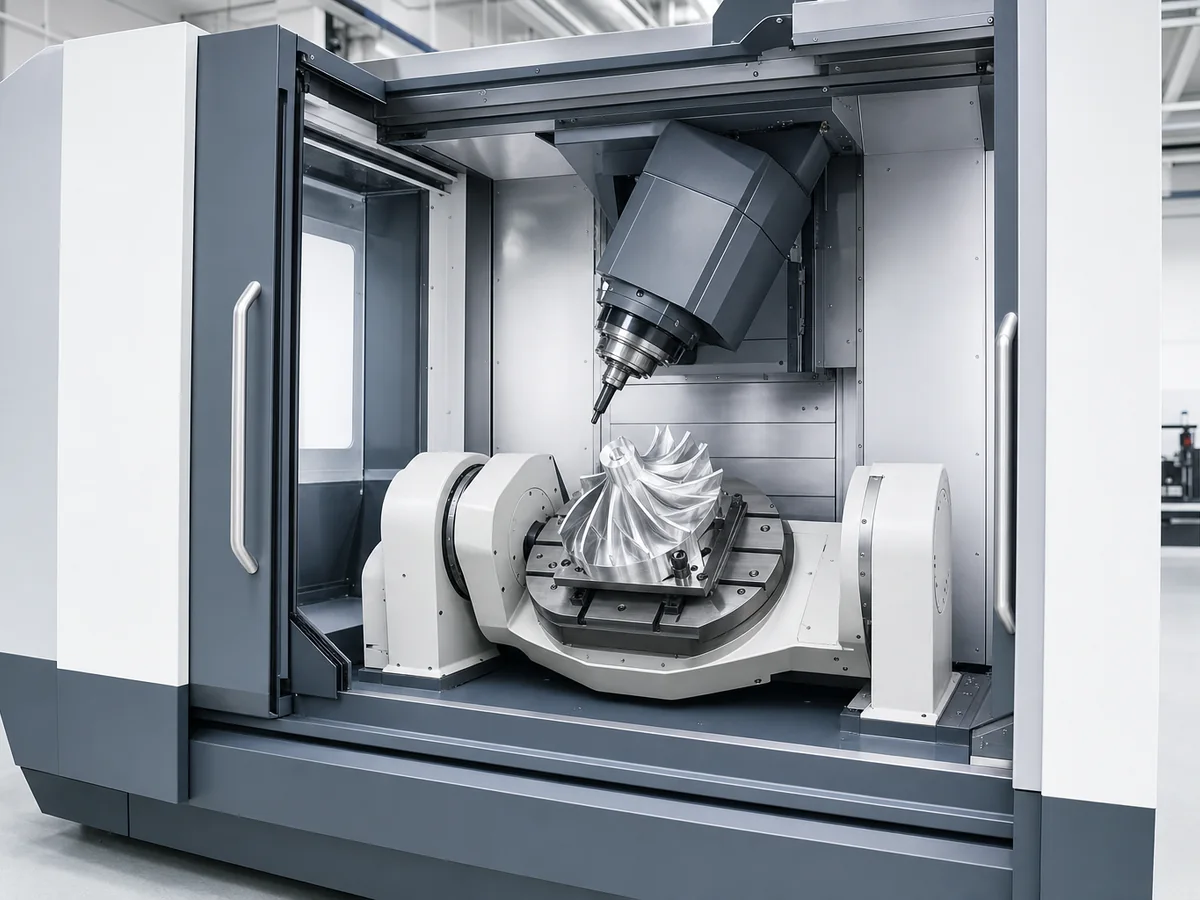

AM-U650
5 Axis CNC Machine
Trunnion-table universal machining center for impellers, aerospace frames and medical parts that need one-setup accuracy.
- Trunnion table
- 650 mm dia.
- Spindle
- 15,000 rpm HSK-A63
- Simultaneous axes
- 5

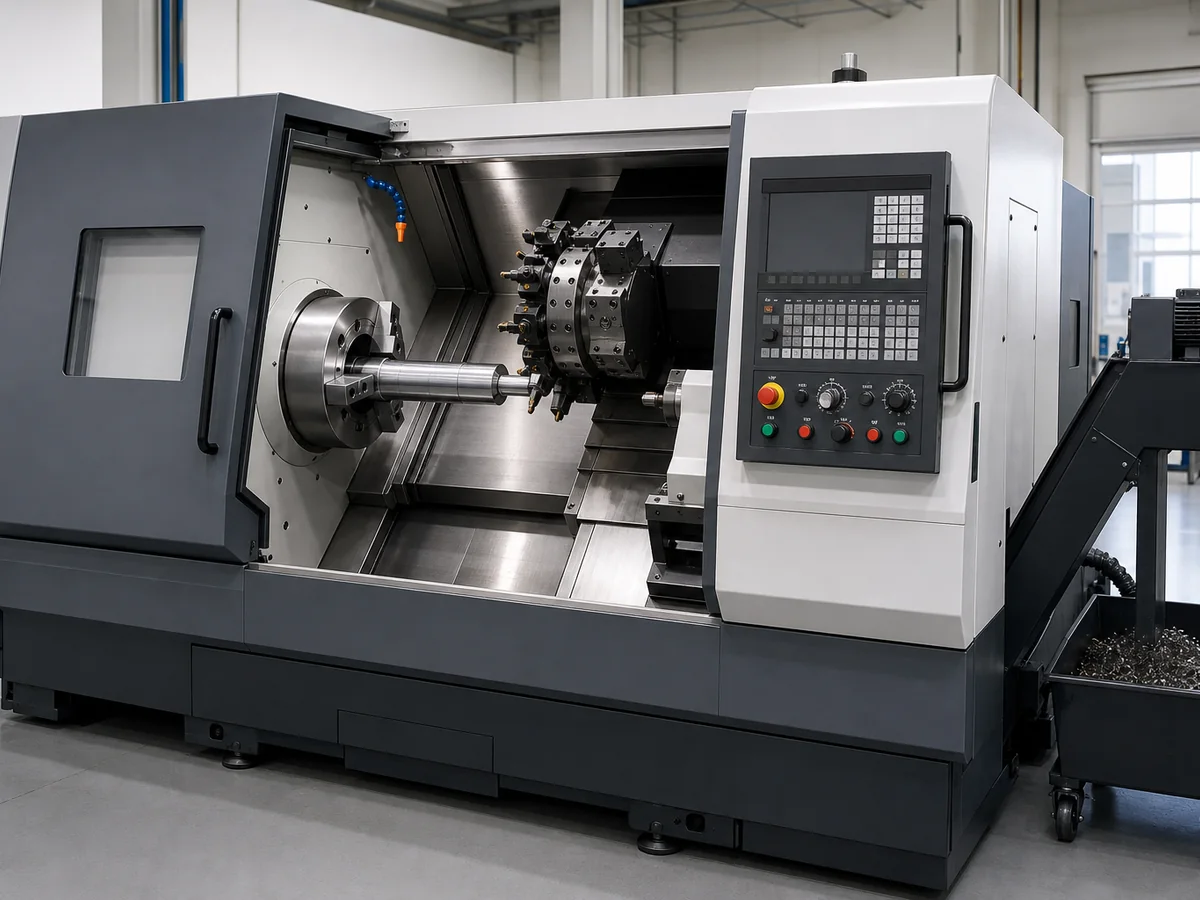

AM-T520
CNC Lathe & Turning Center
Slant-bed CNC turning center with optional live tooling and bar feeder, sized for shafts, flanges and chucked work.
- Swing / turning dia.
- 660 / 520 mm
- Chuck
- 10 in hydraulic
- Turret
- 12 stations

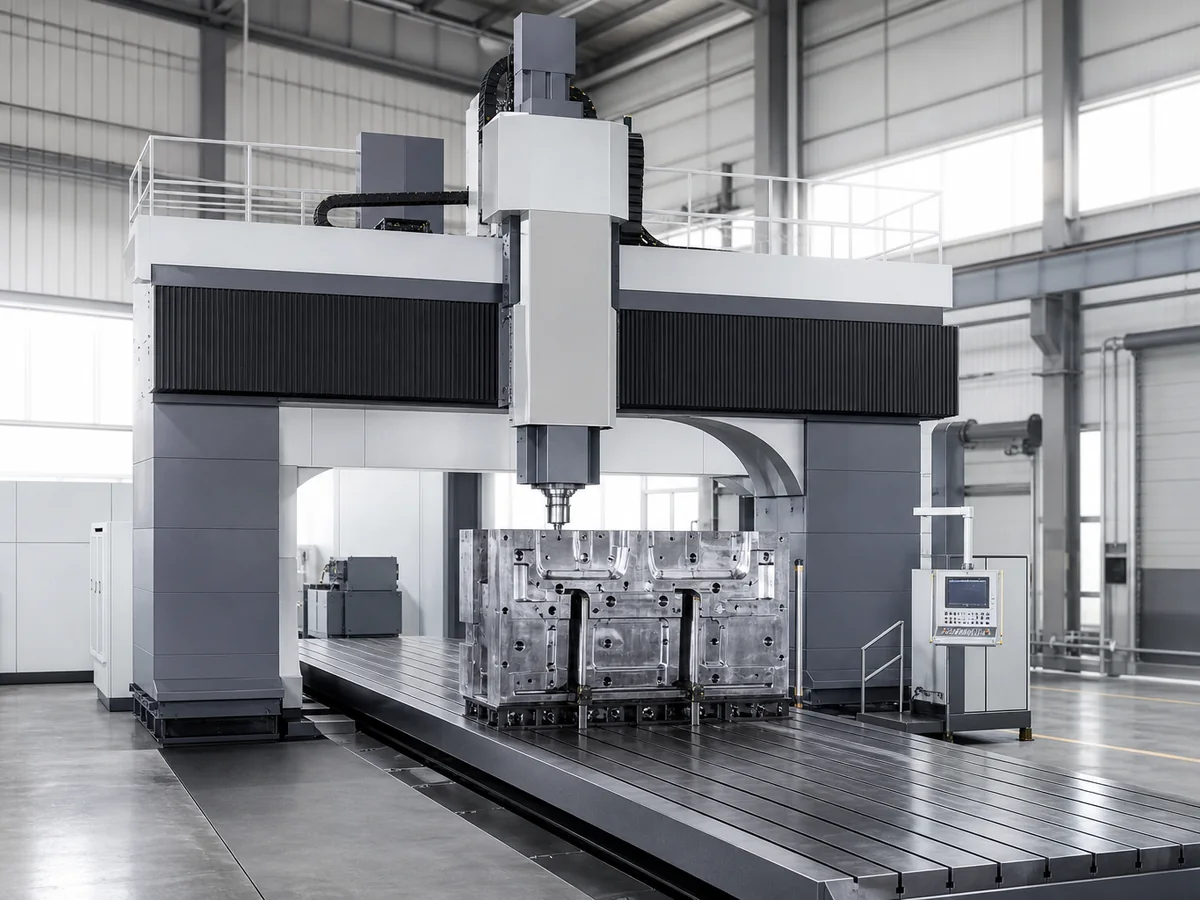

AM-G2340
Gantry & Horizontal Machining Center
Double-column gantry for large molds, frames and plates. Horizontal machining center variants available for box parts.
- Table
- 2,300 x 4,000 mm
- Table load
- 12 t
- Spindle
- 8,000 rpm BT50
What Rigidity Is Built From
A machining center is only as good as its structure and assembly. These four disciplines decide how our machines hold tolerance year after year.
-

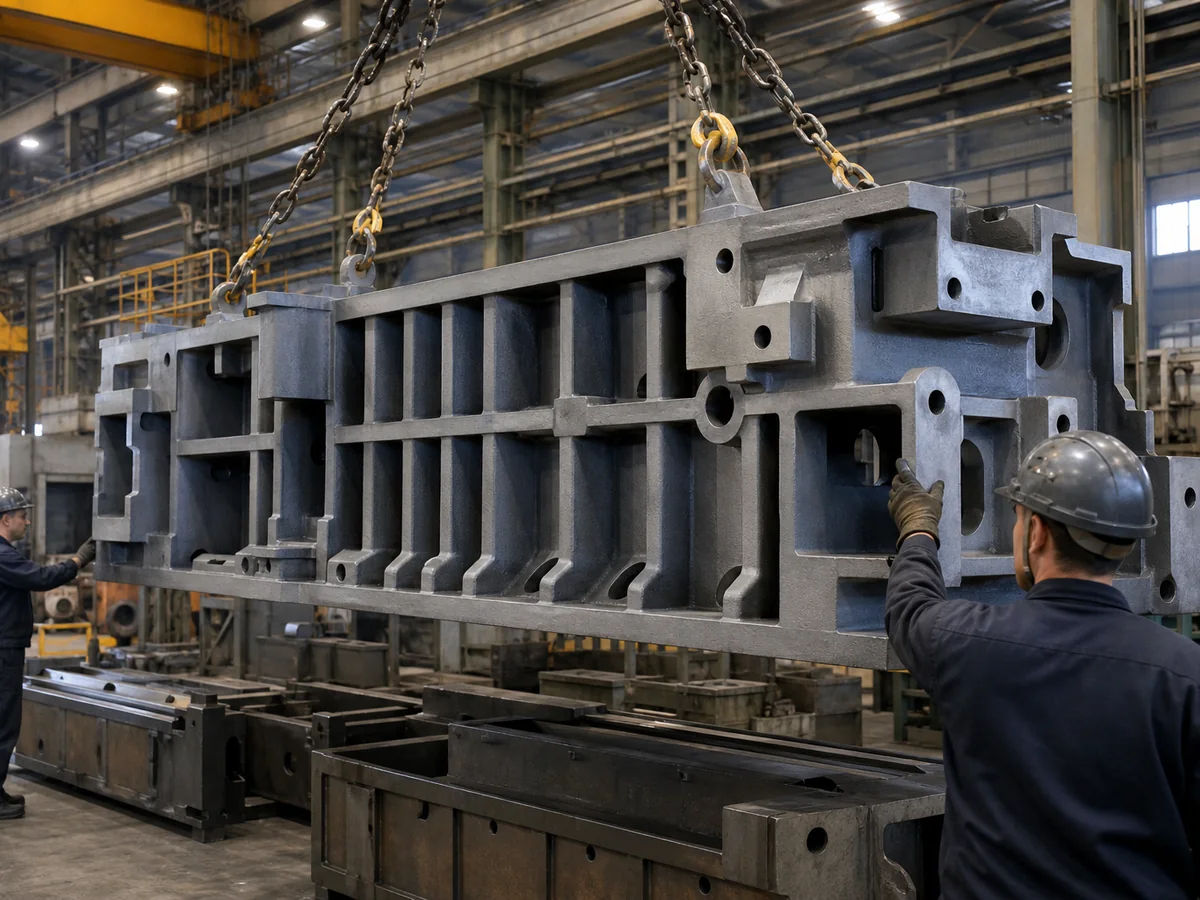

Stress-Relieved Castings
Resin sand cast iron bases and columns, aged and stress-relieved before machining, with ribbing sized by FEA.
-
Guideways Matched to the Job
Hand-scraped box ways for heavy cutting, roller linear guideways for fast positioning. We fit what your parts need.
-

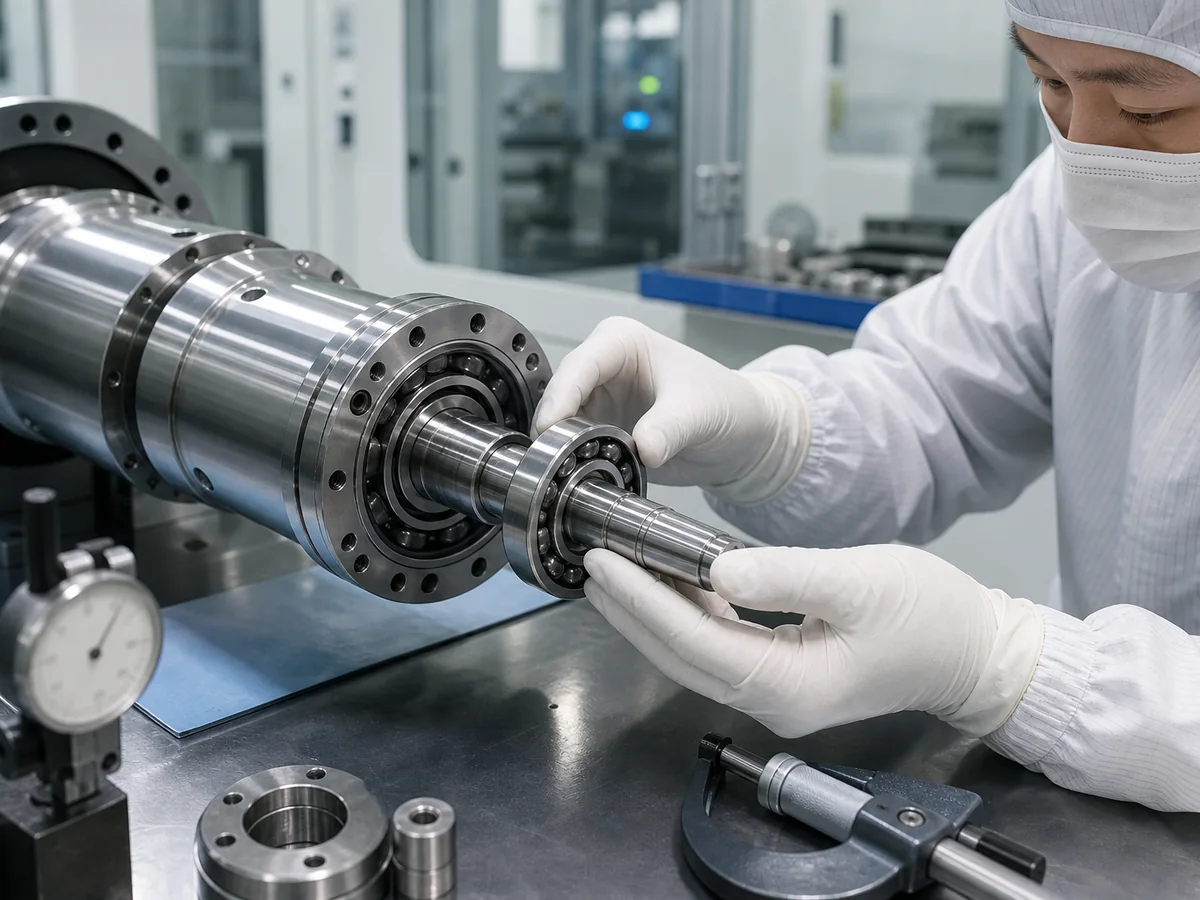

In-House Spindle Assembly
Spindles are built and balanced in a temperature-controlled cell, then run in and monitored for vibration before fitting.
-
Compensation as Standard
Pitch error and thermal compensation are mapped on every machine, not just on request. The maps ship with the machine.

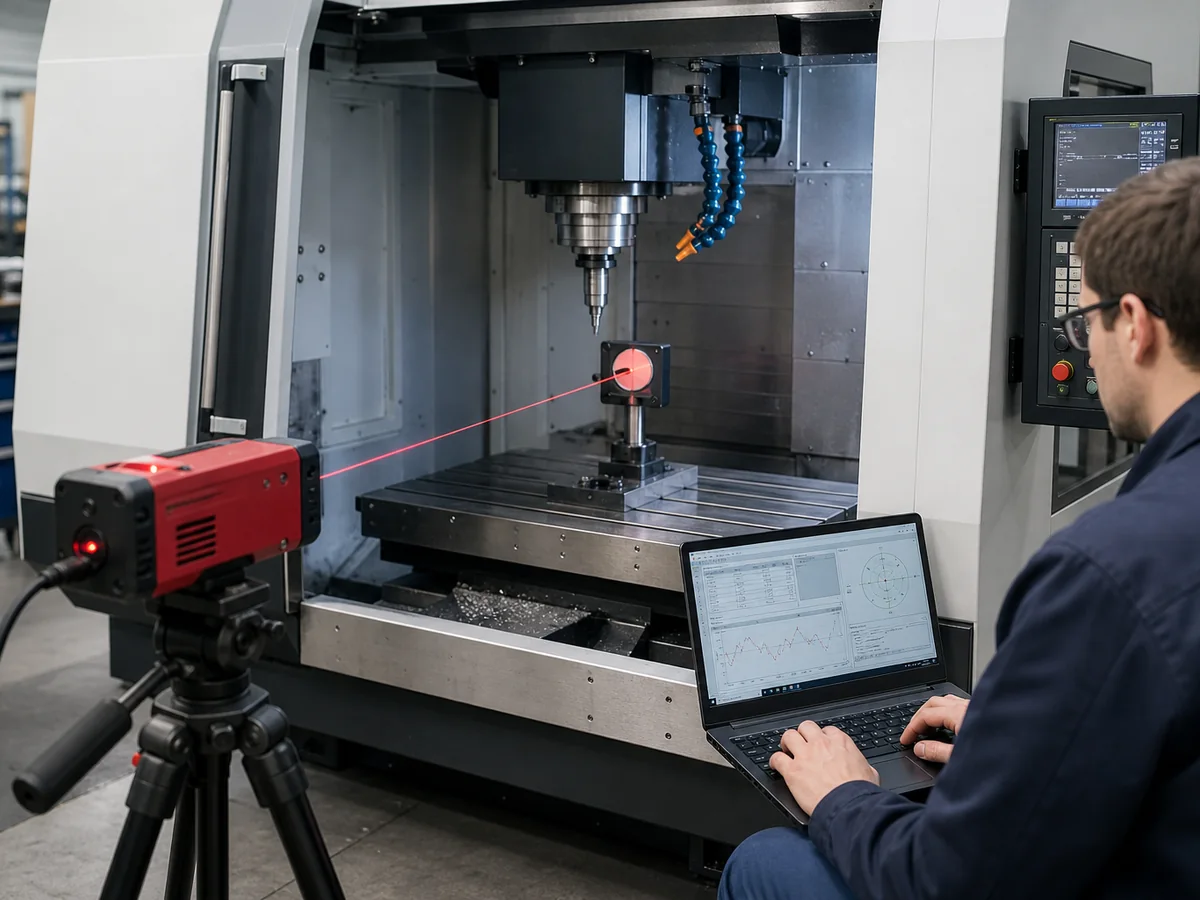

±0.003 mm
Positioning accuracy over full travel, measured by laser interferometer
±0.002 mm
Repeatability at any point, verified with ball bar circular test
48 h
Full-load run-in for every machine before final inspection
Both reports are shipped with the machine and repeated on site after installation, so the numbers you sign off in Suzhou are the numbers on your floor.
Parts Our Machines Cut Every Day
From single-cavity molds to pallet lines running around the clock, these are the industries where AXISMILL machines earn their keep.

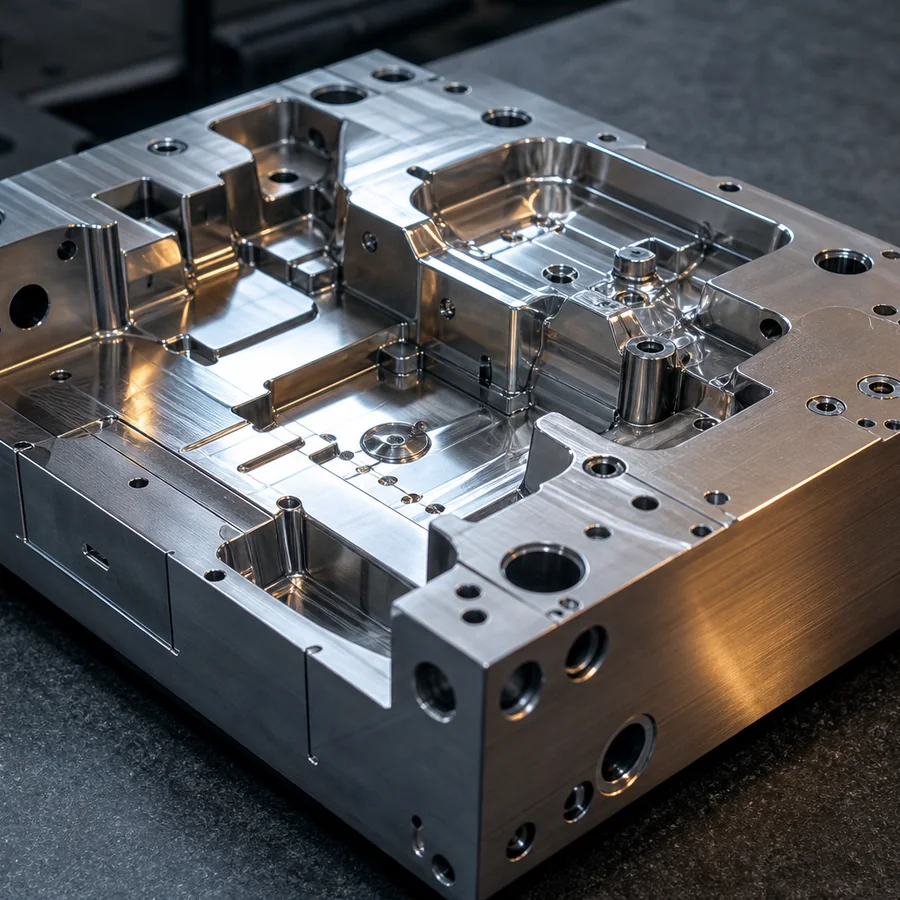

Mold & Die
Cavity and core work in P20 and H13, deep pockets with long tools.

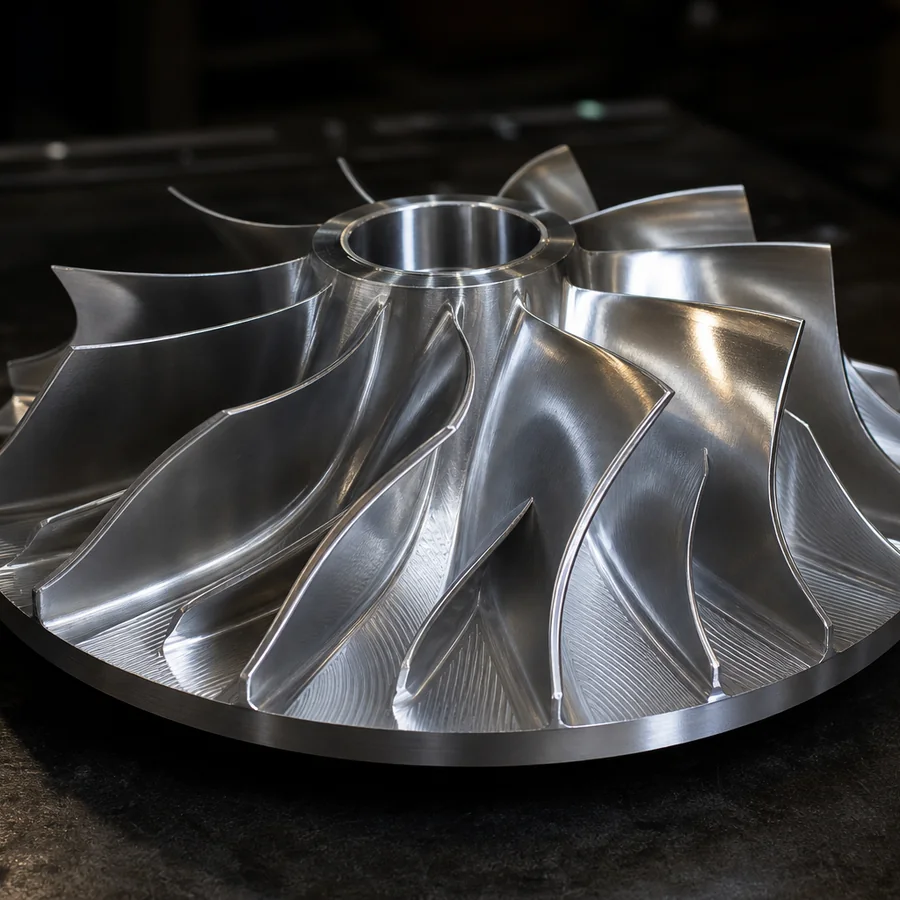

Aerospace
Impellers, blisks and structural frames cut in one setup on 5 axis.

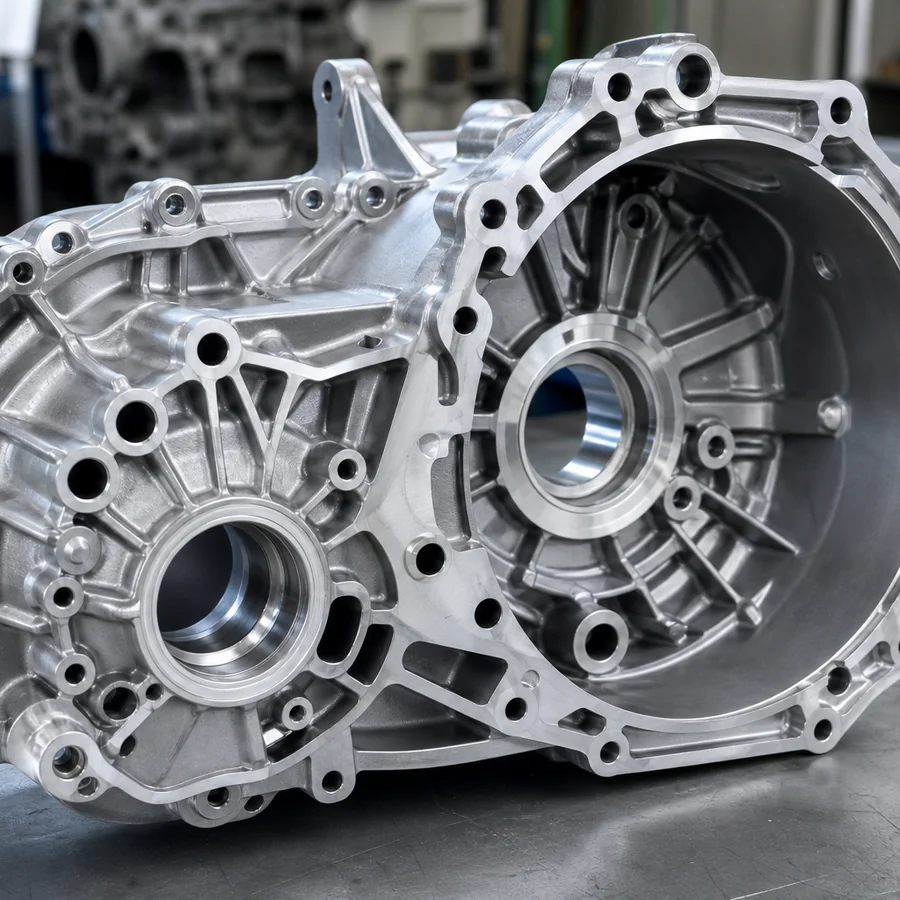

Automotive
Housings and brackets at takt time, with probing and auto offsets.

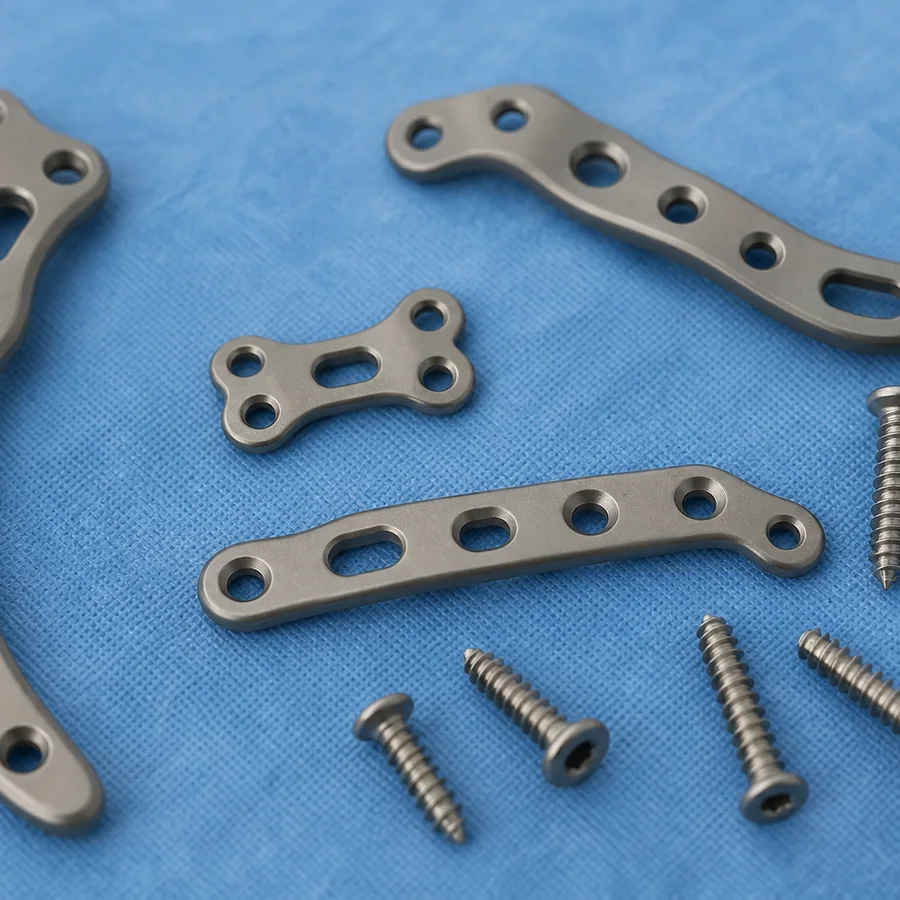

Medical
Titanium implants and instruments with mirror finishes off the machine.

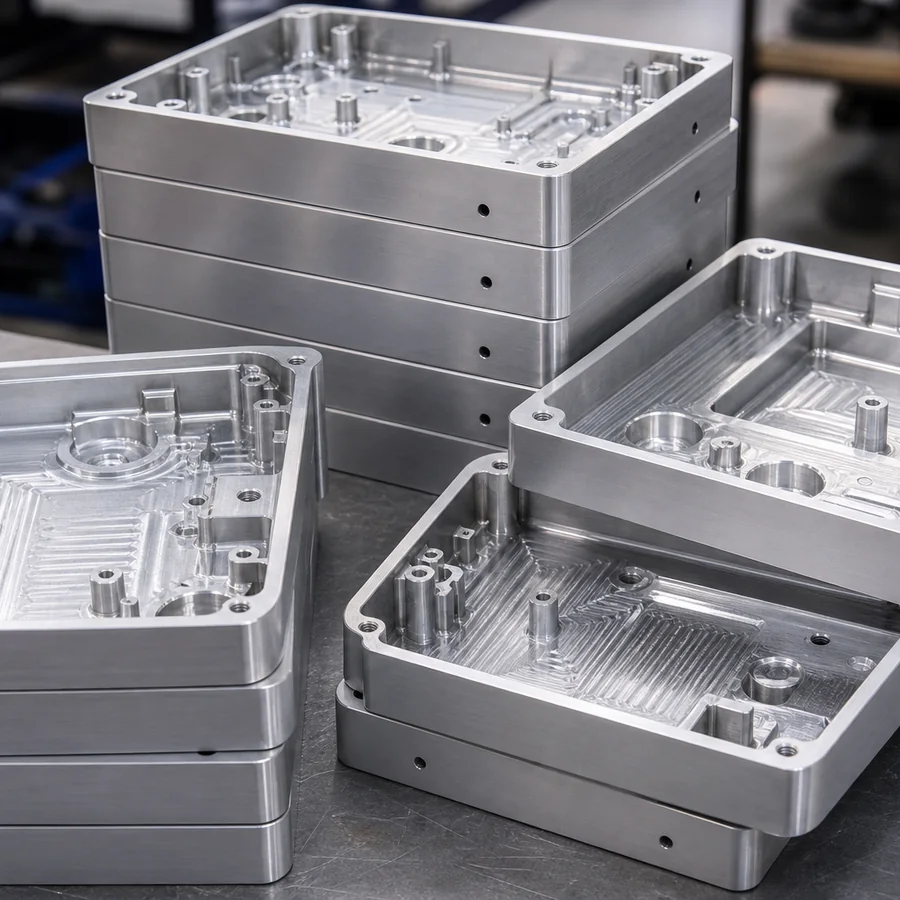

Electronics
Thin-wall enclosures and heat sinks with tight cosmetic standards.

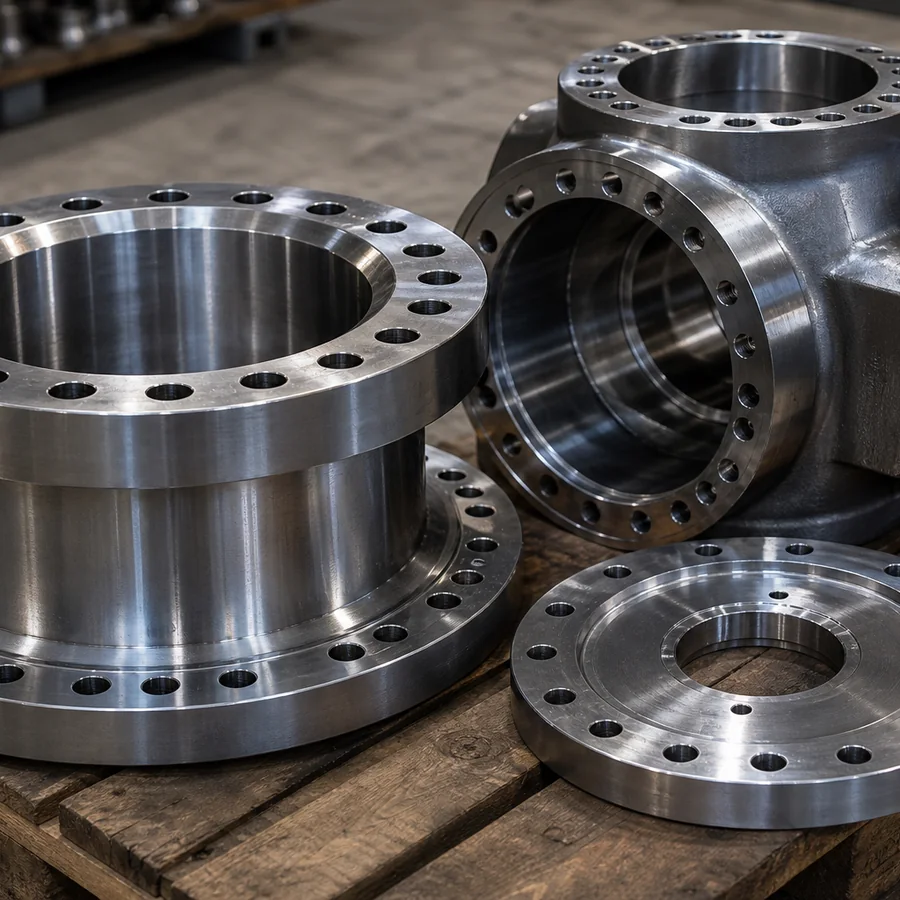

Energy
Flanges, valve bodies and pump parts in stainless and duplex steel.

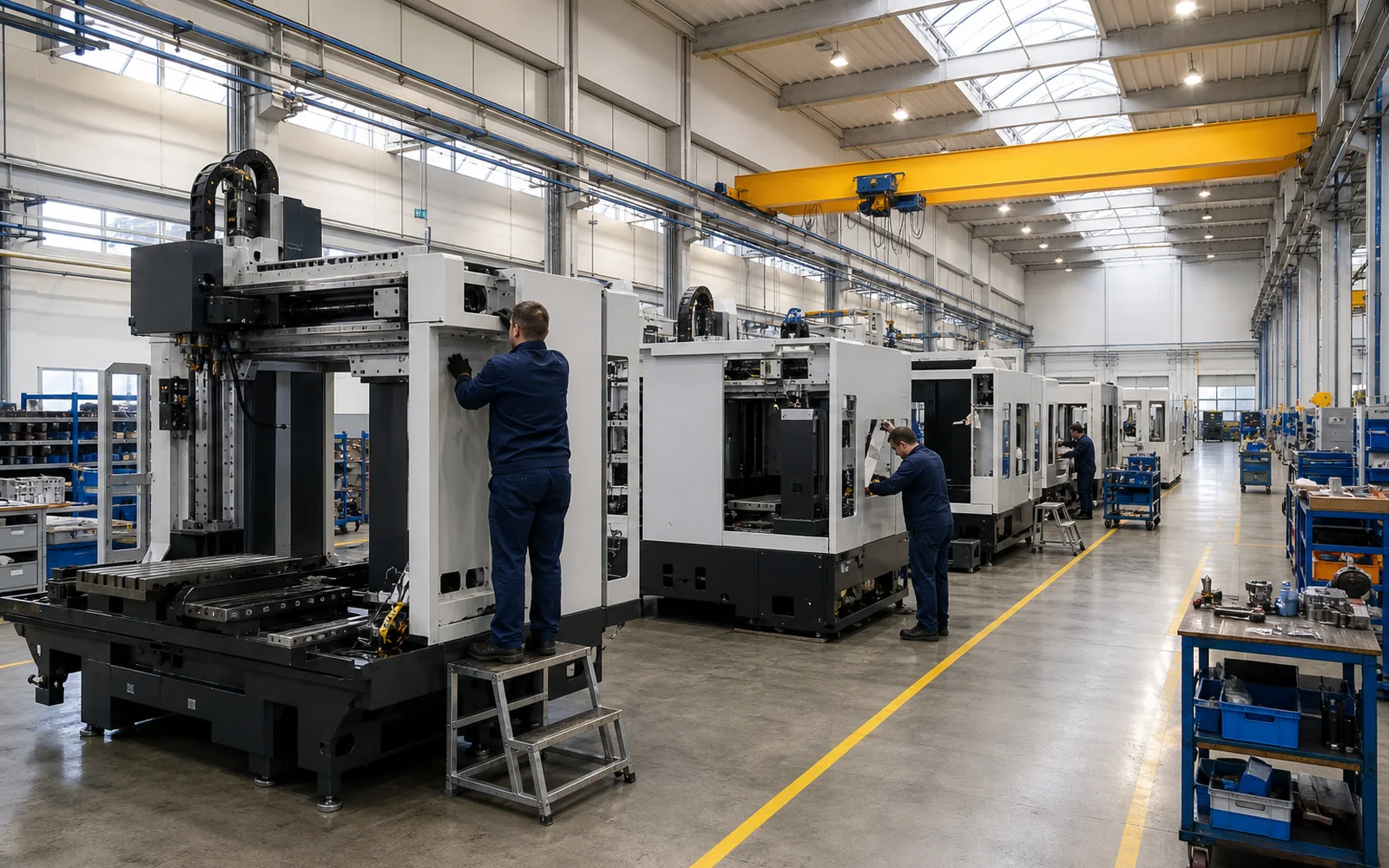

Inside the AXISMILL Plant
42,000 m² in Suzhou, from casting storage to final test. Keeping the critical steps under one roof is how delivery dates hold and tolerances stay honest.
- Casting aging yard. Bases rest before machining so they stay stable after.
- Temperature-controlled assembly. Guideway fitting and scraping at 20 °C, all year.
- Dedicated spindle cell. Built, balanced and run in before reaching the machine.
- Test bay with your parts. Run-offs cut customer material, witnessed live or on video.
From Spec Sheet to First Chip
A clear path from your part drawings to a machine cutting in your shop. Typical door-to-door time is 45 to 90 days depending on configuration.
-
01
Requirement Review
Send part drawings and volumes. Our engineers propose machine, workholding and cycle time within 3 days.
-
02
Configuration & Quote
Control brand, spindle, magazine and options locked in a written spec you approve before anything is built.
-
03
Build & Inspection
Assembly with staged photos, laser and ball bar tests recorded, geometry protocol signed by QC.
-
04
Run-Off With Your Parts
The machine cuts your material to your print. You witness it in person or live on camera and sign off.
-
05
Install & Training
Our engineers level, recalibrate and hand over on your floor, then train your operators for up to a week.
Recent Installations
Three deliveries from the past year, with the numbers their owners quote back to us.

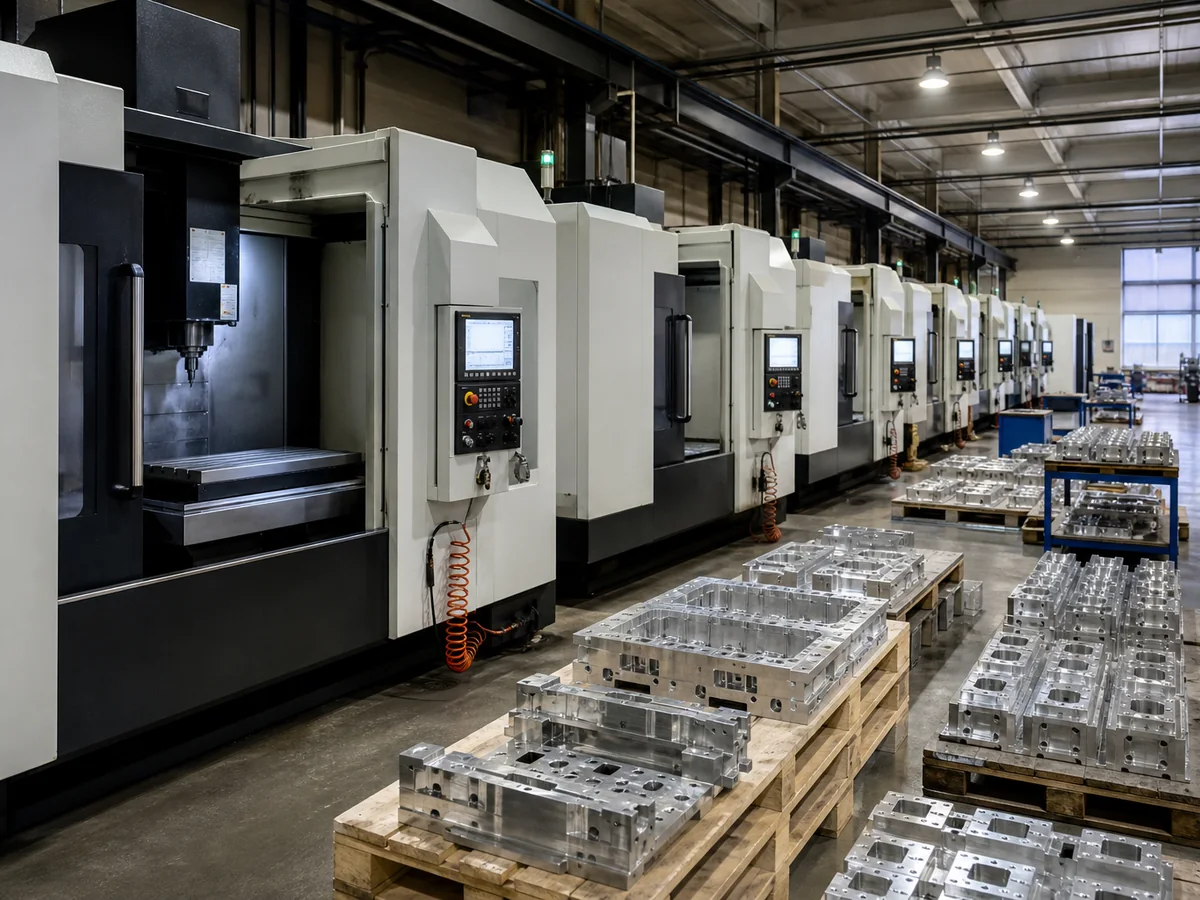

Three VMCs Cutting Cavity Work
3 x AM-V856 with probing replaced two older machines. First-article time on cavity plates dropped 31% and finish passes now run unattended overnight.
Turning Line Delivered in 60 Days
Four AM-T520 turning centers with bar feeders, ordered to a takt deadline. Shipped day 58, cutting production housings 11 days after arrival.
First 5 Axis Cell, Trained in a Week
An AM-U650 impeller cell for a shop new to 5 axis. On-site training covered CAM posts and probing routines. First accepted impeller in 12 days.
Frequently Asked Questions
The questions buyers ask before ordering a machining center from us.
Can I choose Fanuc, Siemens or Mitsubishi control?
Yes. All platforms are wired for Fanuc, Siemens or Mitsubishi. We recommend based on what your programmers and local service network already know, and both quote options are priced side by side.
How do I choose between a vertical, horizontal or gantry machine?
Send us the part family. As a rule of thumb: verticals for molds and general parts, horizontals for box parts needing four-side access and pallet changers, gantries when the part outgrows a 1,000 mm table. We reply with a cycle time estimate for each viable option.
How is accuracy verified before shipment?
Every machine gets a laser interferometer test for positioning and repeatability plus a ball bar circular test, both to ISO 230. The protocols are signed, shipped with the machine and repeated on your floor after installation.
What does installation and training include?
Our engineers handle unloading supervision, leveling, geometry recheck, laser recalibration and control setup, then train operators and maintenance staff for up to five days. Most sites are cutting production parts within two weeks of arrival.
What is the typical delivery time?
Standard configurations ship in 45 to 60 days. Five axis machines and gantry mills with custom travels run 75 to 90 days. The date is written into the contract, and our on-time rate over the past three years is 96%.
What about warranty and spare parts?
18 months on the machine, 24 on the spindle. Wear and electrical spares are stocked in Suzhou with 48-hour dispatch, and control parts are sourced through Fanuc and Siemens global networks, so nothing waits on a slow boat.
Request a Machine Proposal
Send drawings or a spec list. Within 3 working days you get a machine recommendation, cycle time estimate and budget quote from an engineer, not a form letter.
