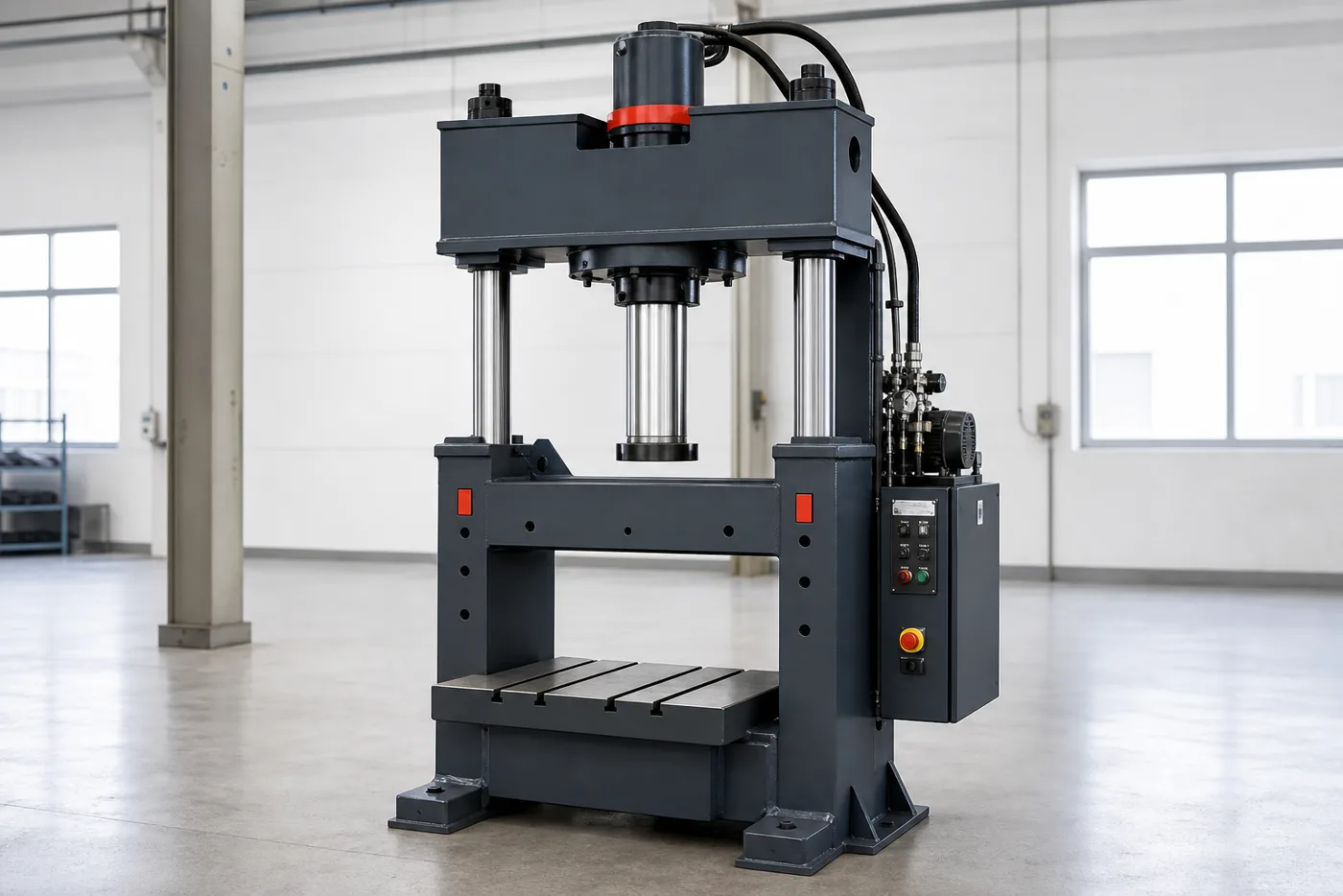

H-Frame Hydraulic Press
Twin-column frame for straightening, pressing bearings and general job-shop work. Wide daylight, movable workhead options and tonnage from 20 to 400 tons.
View detailsHydraulic Press Machine Manufacturer
H-frame, C-frame, four-column and deep drawing hydraulic presses from 20 to 2,000 tons. Cylinders and power units are machined, assembled and load tested in the same workshop that builds the press.
Press Machines and Hydraulic Components
Standard frames cover most pressing work. When they do not, we change tonnage, daylight, bed size and controls against your part drawing, and we build the cylinder and power unit to match.

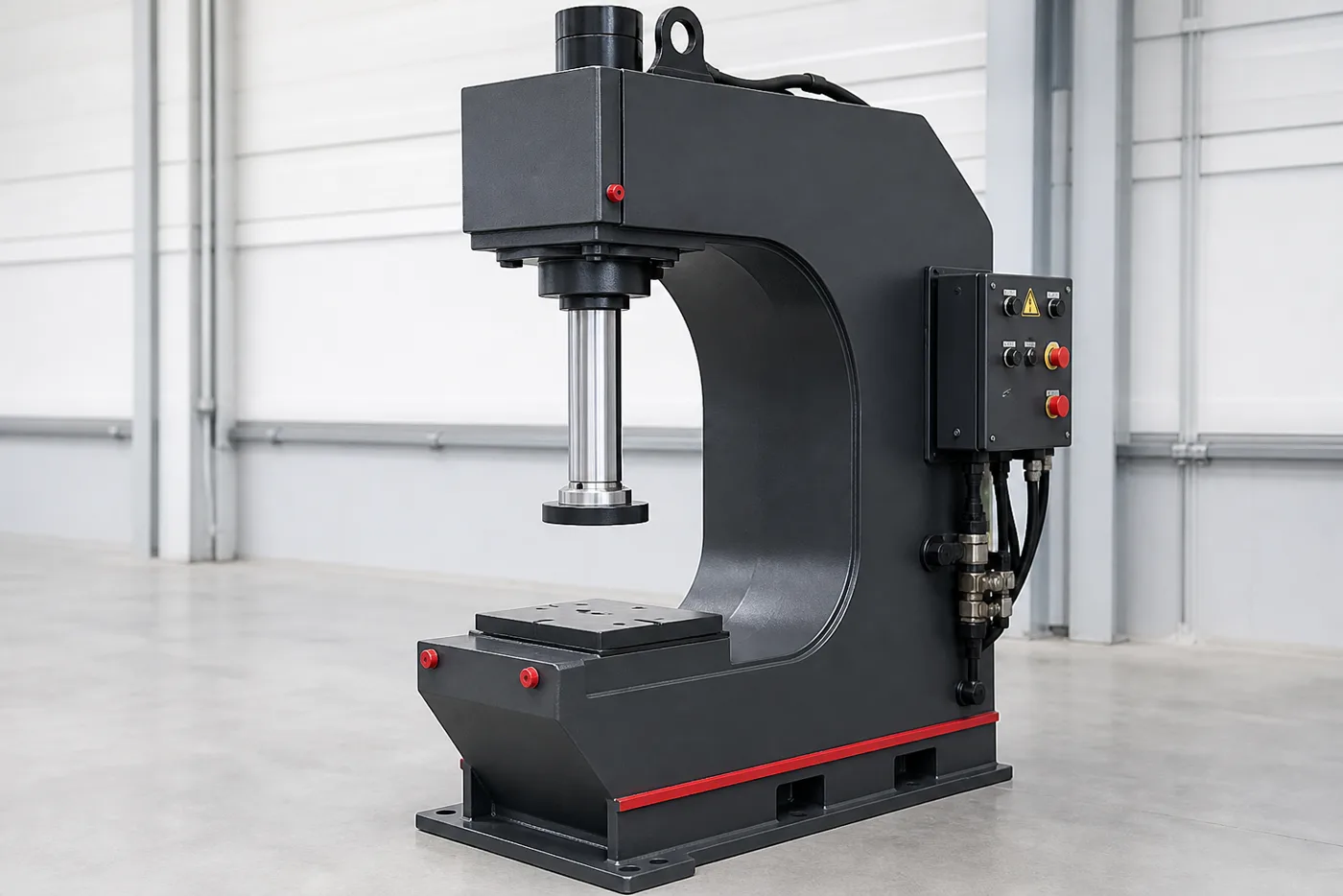

C-Frame Hydraulic Press
Open-throat frame gives three-side access for punching, riveting and press-fit assembly. A compact footprint that slots into cells and single stations.
View details

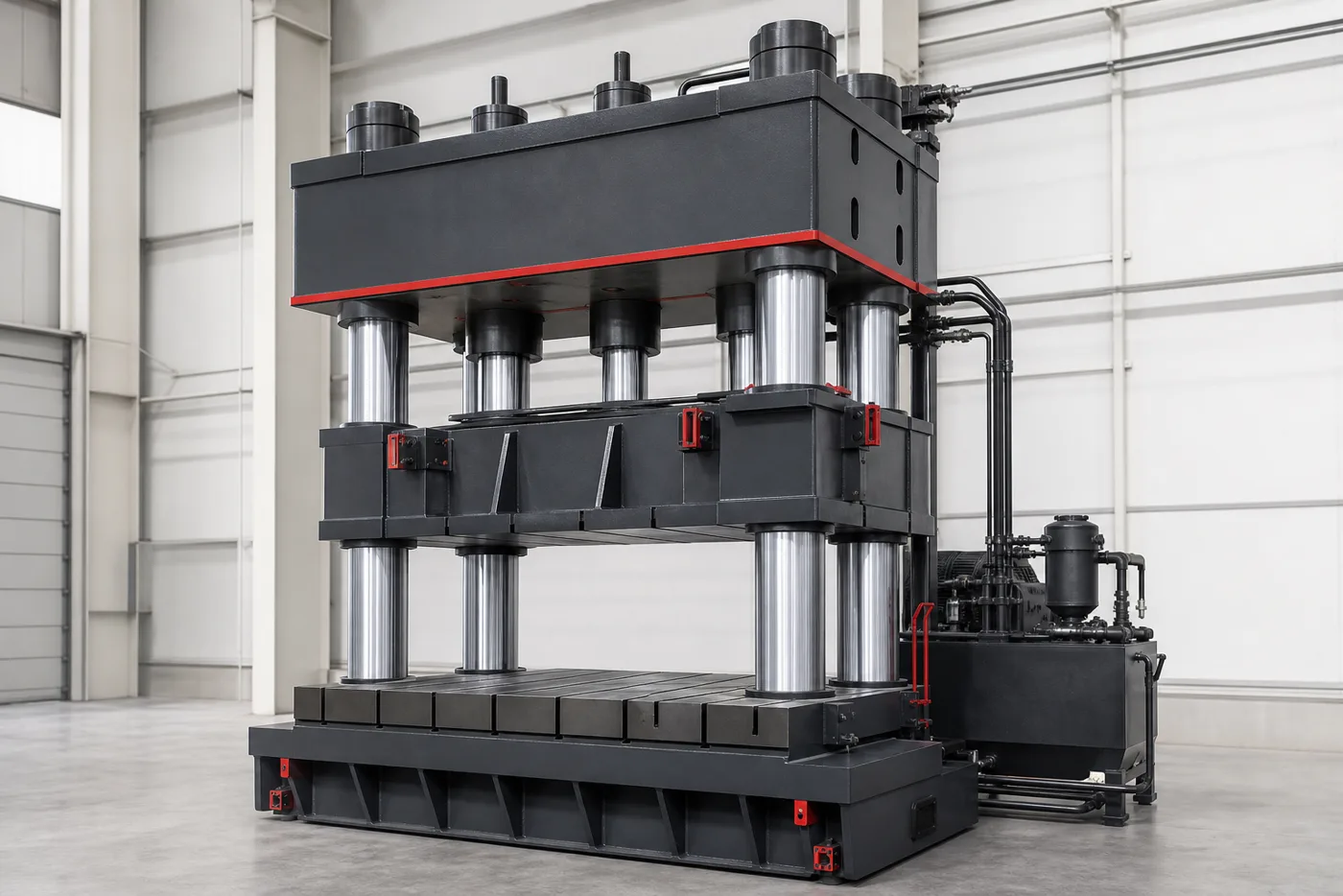

Four-Column Hydraulic Press
Four chrome guide columns keep the platen square under off-center loads. Built for molding, trimming and forming up to 2,000 tons with even pressure across the bed.
View details

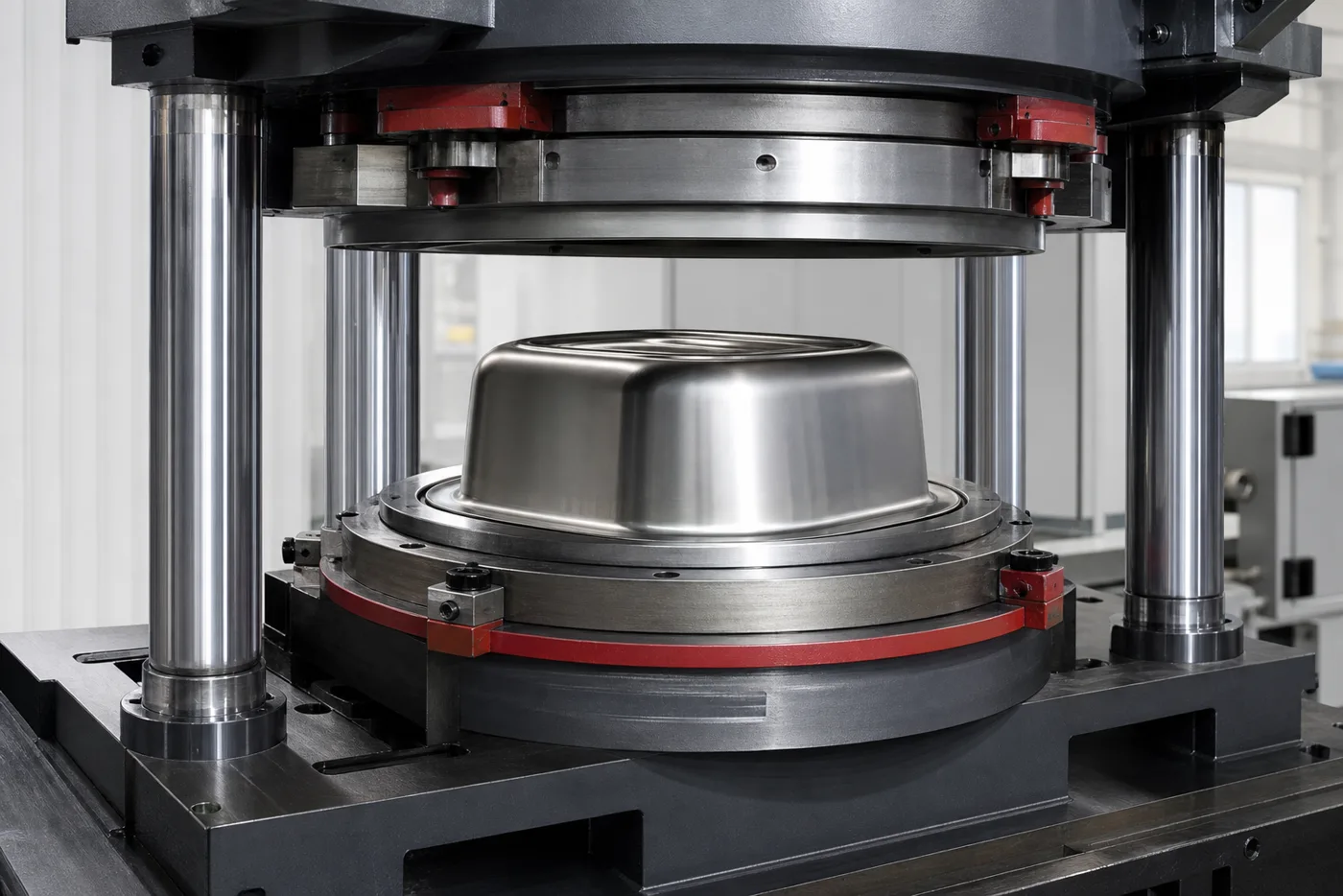

Deep Drawing Press
Blank holder and drawing cushion act independently, so stainless sinks, cookware and appliance shells come off the die without wrinkles or tears.
View details

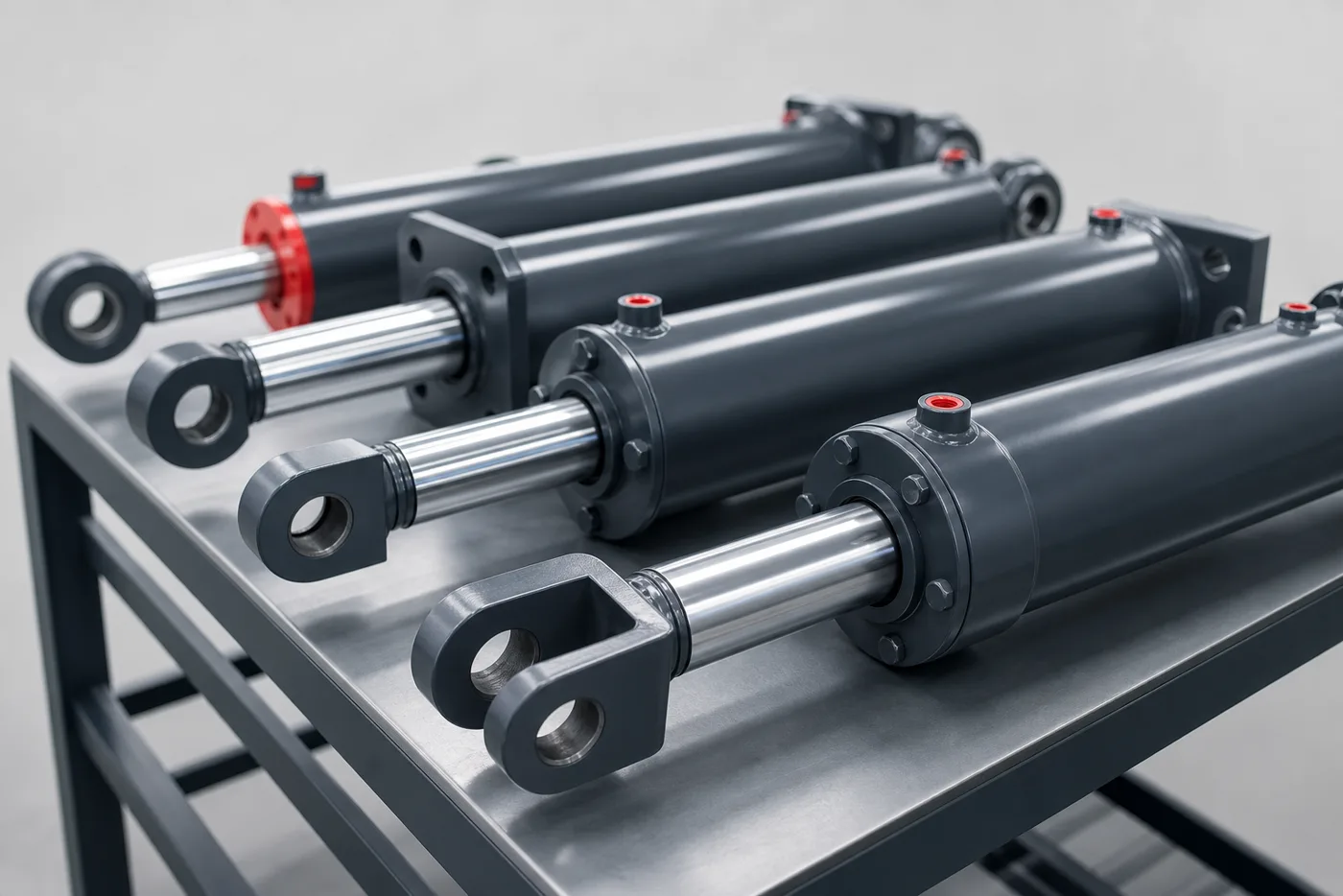

Hydraulic Cylinder
Welded and tie-rod cylinders honed in-house, with custom hydraulic cylinders made to your stroke, bore and mounting. Supplied on presses or as replacement units.
View details

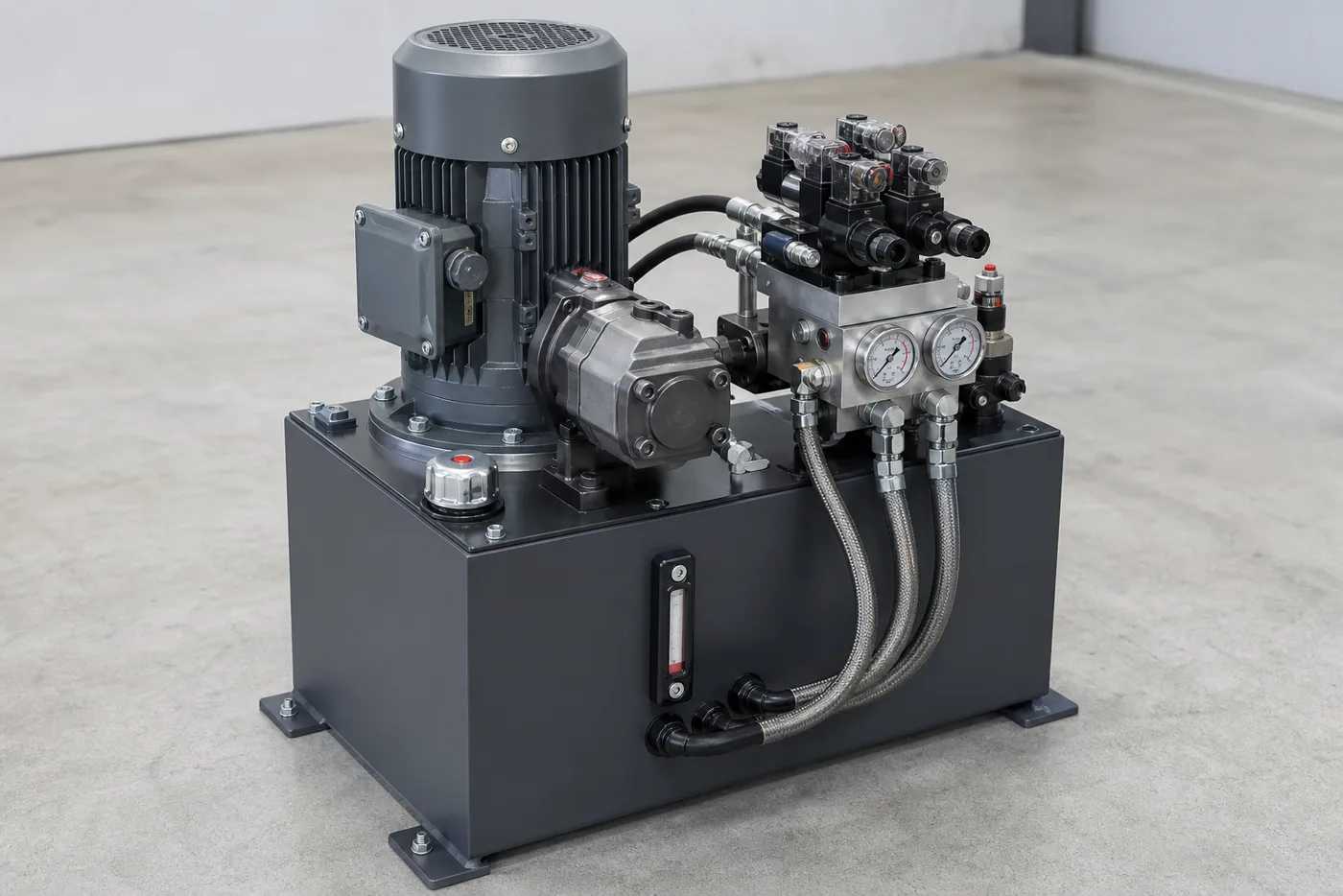

Hydraulic Power Unit
Power packs from bench-side units to multi-pump stations. Motor, pump, manifold and cooling are sized to your duty cycle and wired ready for connection.
View detailsHow a Hydraulic Press Works
Four parts decide the force, speed and service life of every press. This is the chain we build and test before a machine leaves the floor.
01
Power unit builds pressure
The motor drives a pump that pushes oil from the reservoir into the circuit at working pressure.
02
Oil enters the cylinder
Valves route pressurized oil above the piston. Pressure on the piston area turns into pressing force on the ram.
03
Seals hold the force
Hard chrome rods and imported seal kits keep pressure where it belongs, cycle after cycle.
04
Valves control the return
Relief and counterbalance valves set pressing depth and bring the ram back at a controlled speed.
Pressing Work Across Industries
The frame type changes, the job stays the same: hold force steady while the die does its work.

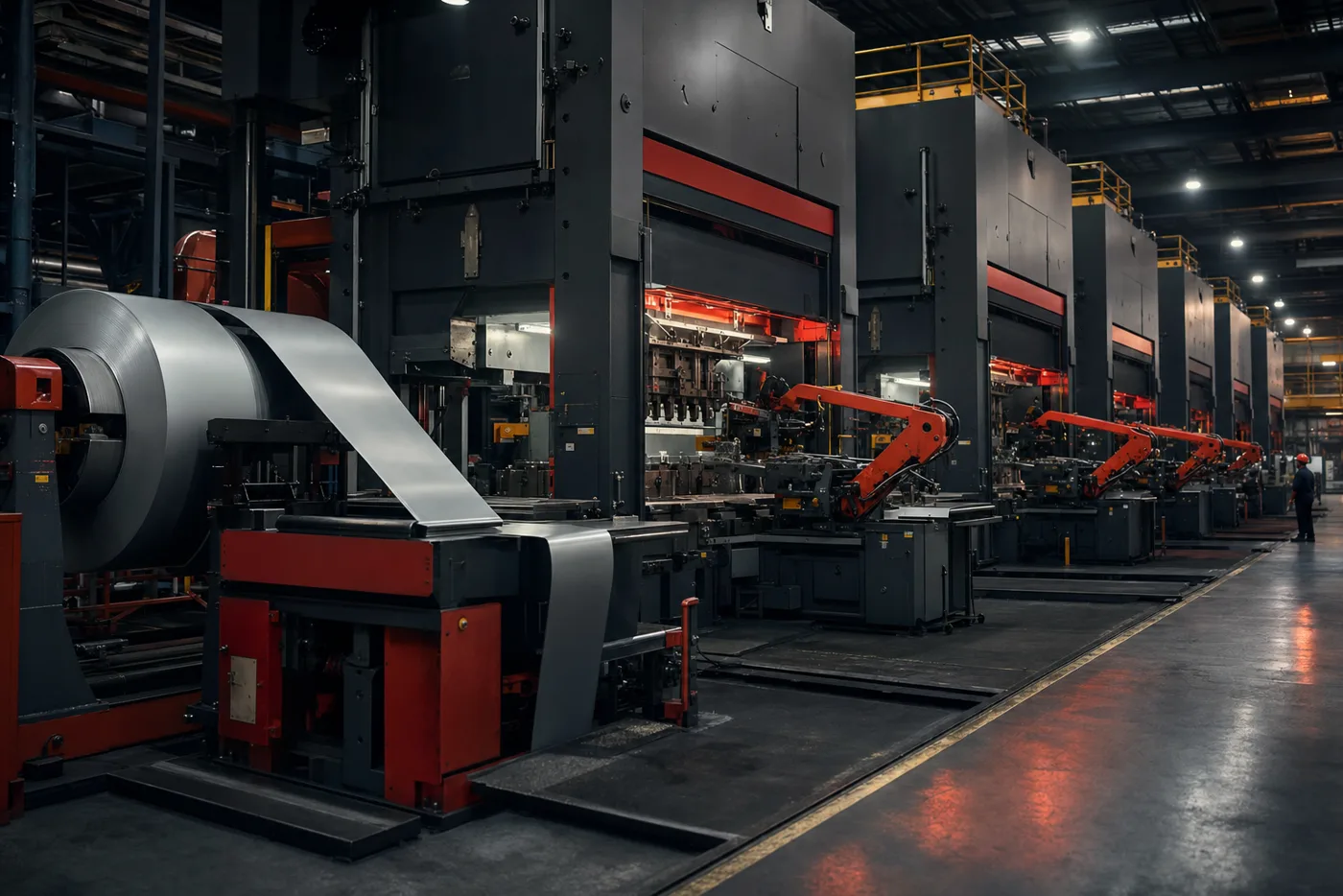

Metal Stamping & Forming
Blanking, bending and coining on H-frame and four-column presses, fed by coil lines or robots.

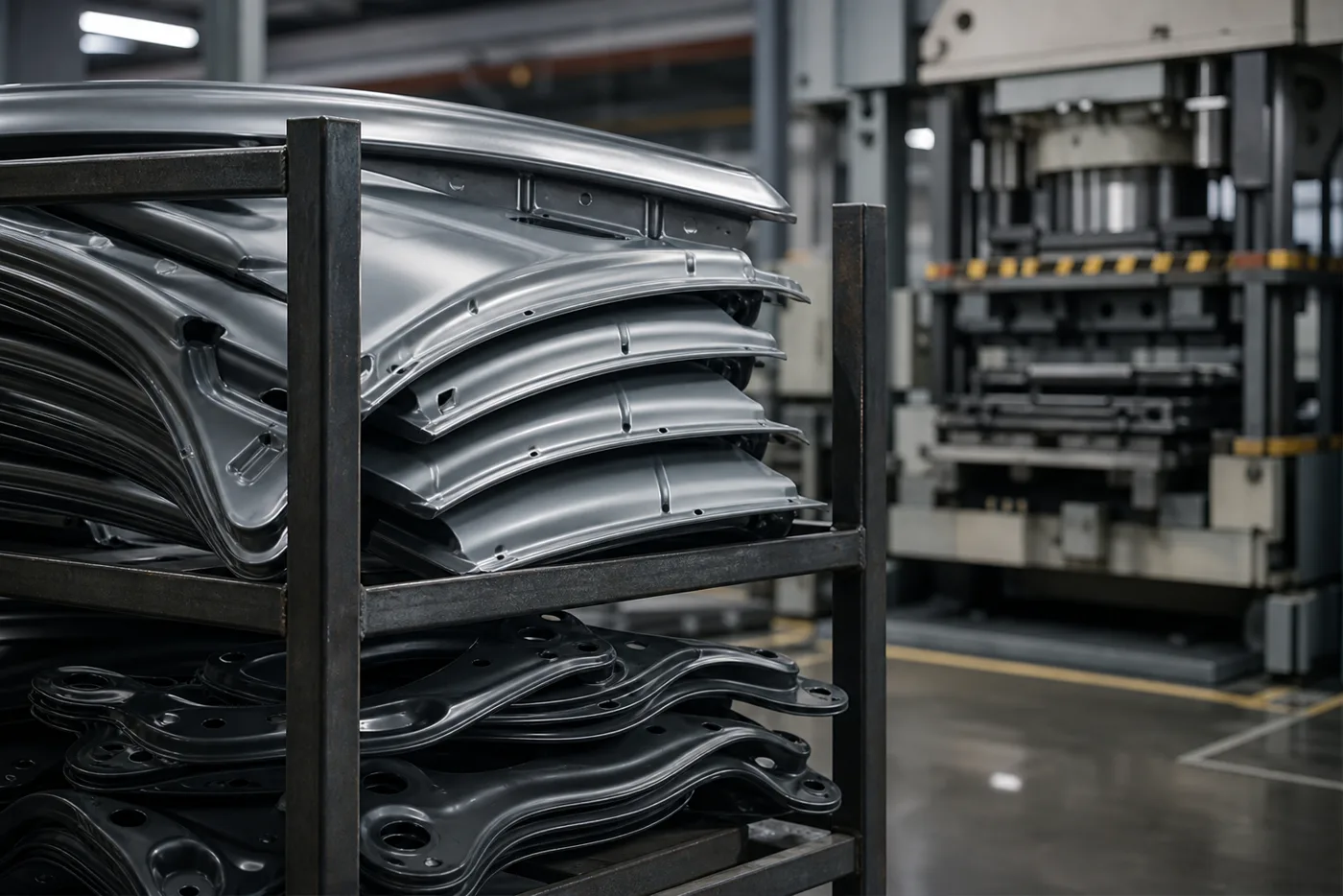

Automotive Components
Body panels, control arms and bushings pressed to tolerance for tier suppliers on three continents.

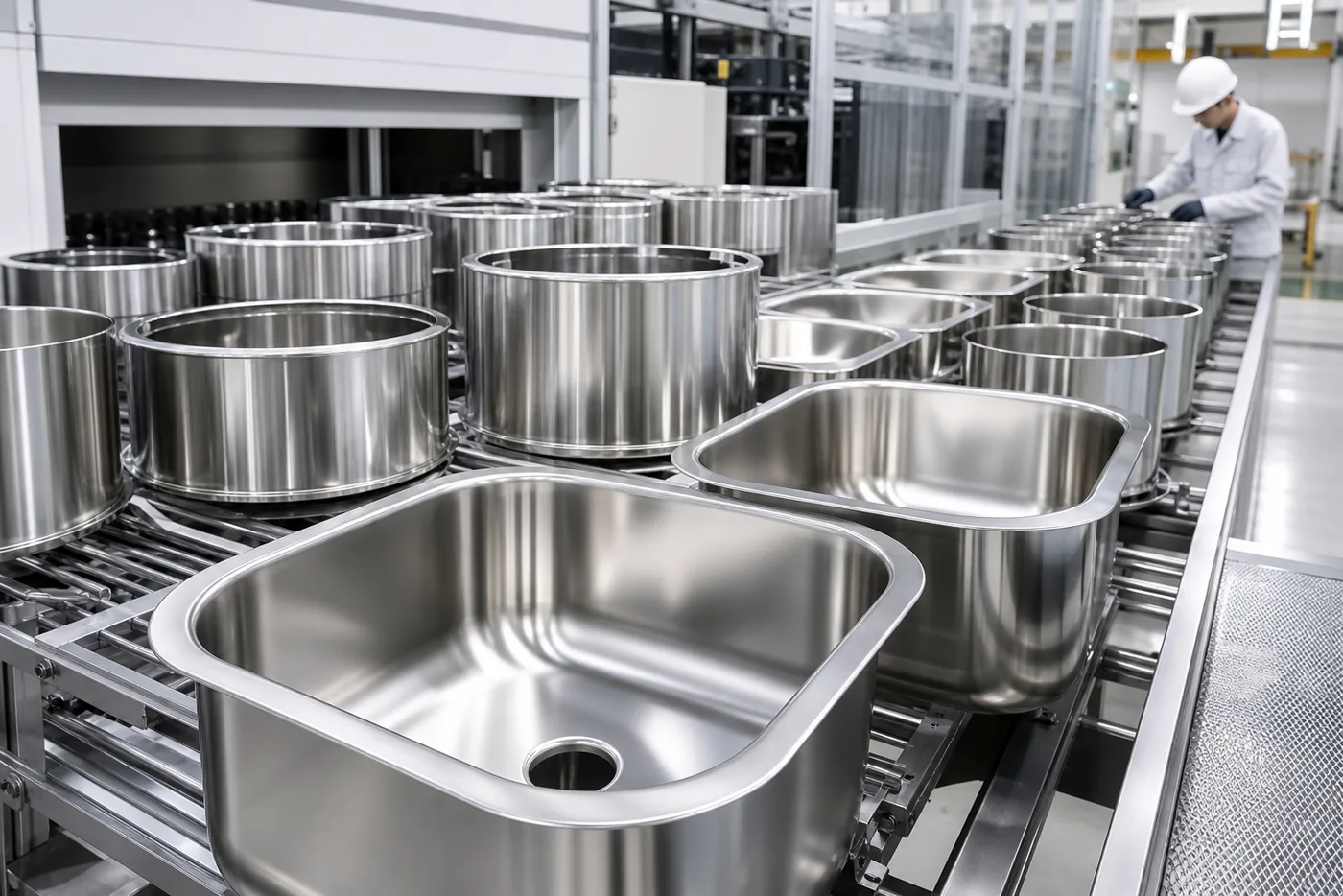

Appliance & Cookware
Deep drawing presses turn stainless blanks into sinks, pots and drums with a clean, polished draw.

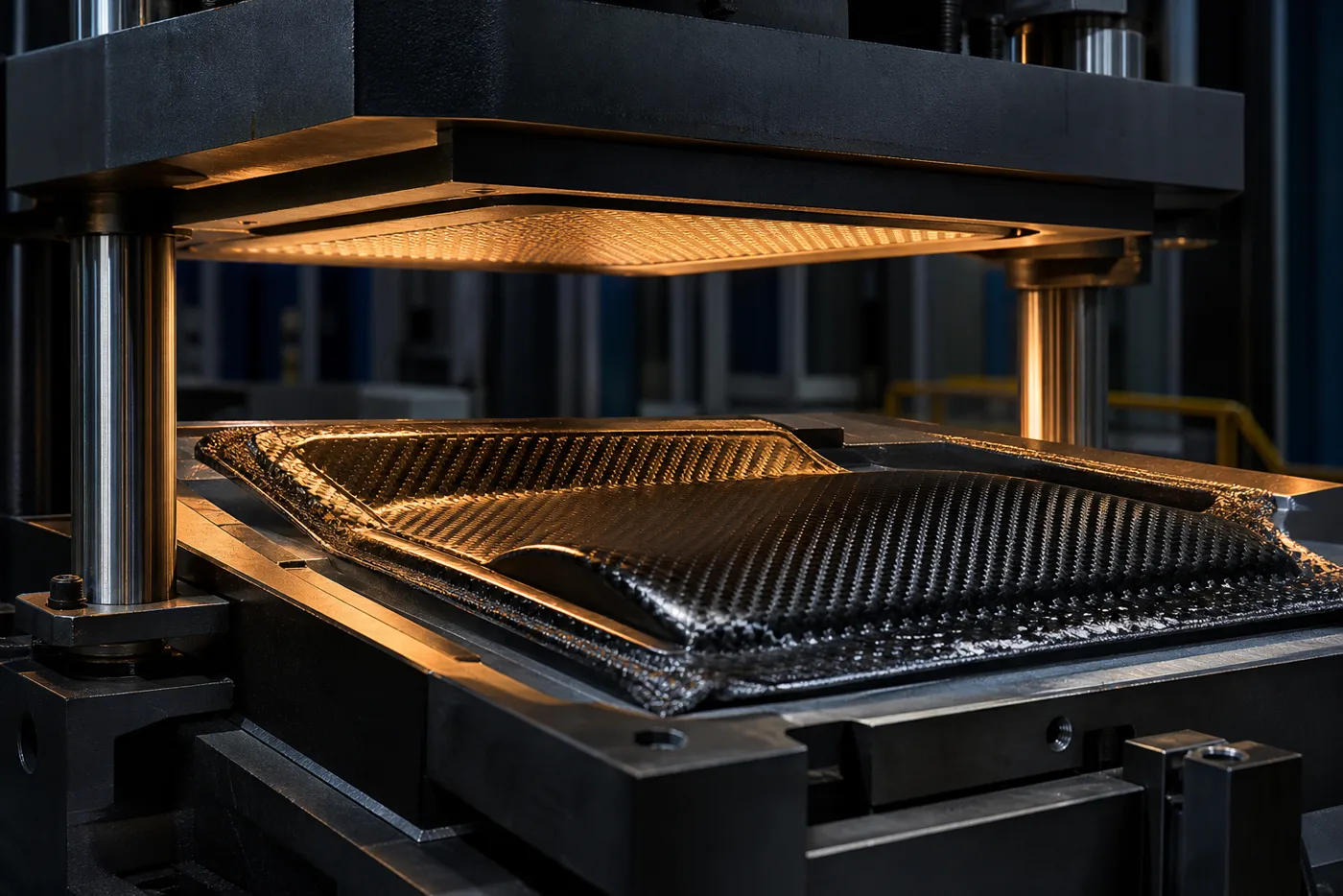

Composite & Rubber Molding
Heated platens and precise pressure holding for SMC, carbon fiber and rubber compression molding.
From Drawing to Running Press
Buying a press is a project, not an order line. One engineer owns yours from the first email to the first pressed part.
01
Requirement review
We read your part drawing and process, then confirm tonnage, daylight, stroke and bed size before anything is priced.
02
Design approval
You receive the general arrangement drawing, hydraulic circuit and component list for sign-off. Changes happen here, on paper.
03

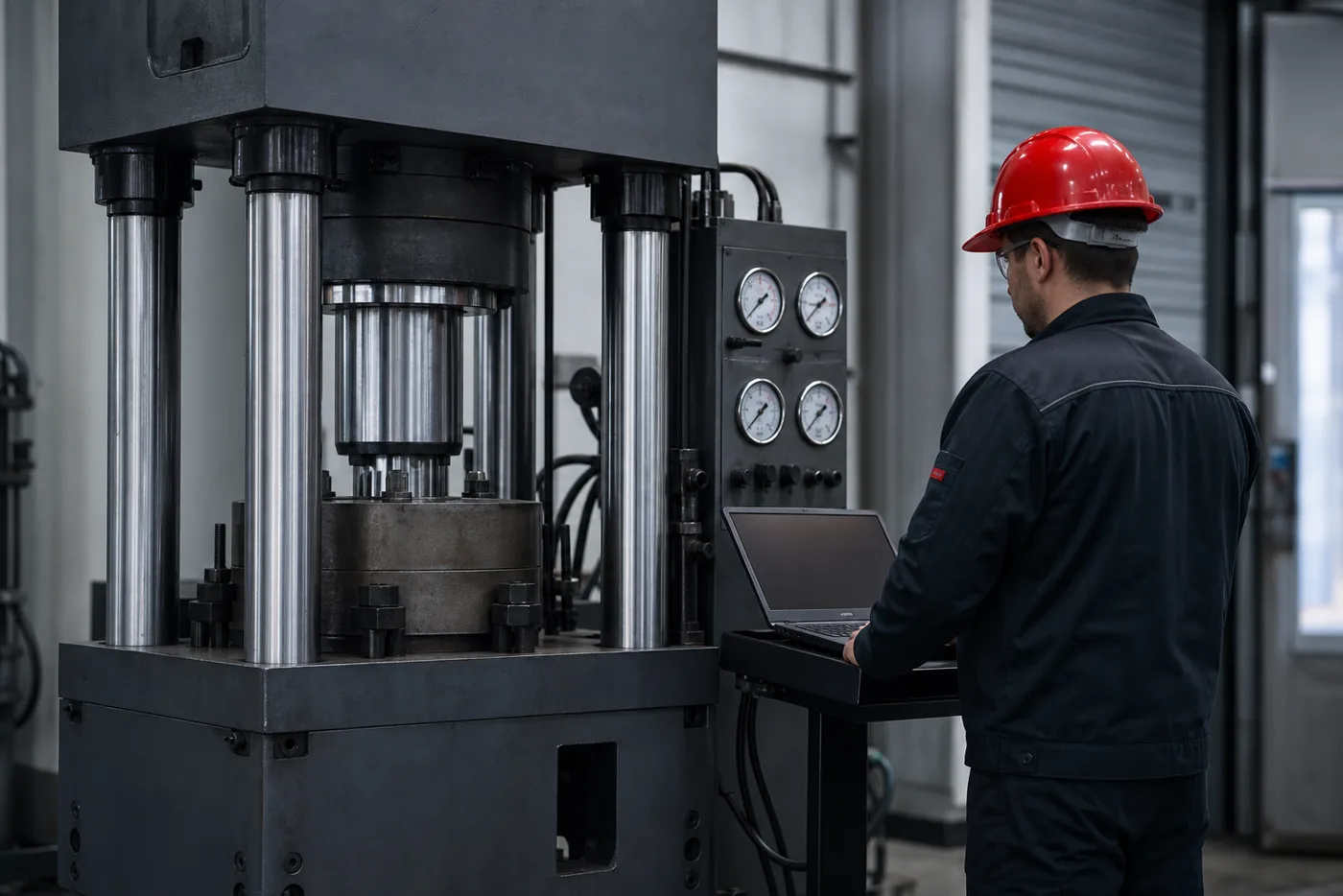

Build and load test
Fabrication, machining and assembly run in our own shop. Every press holds rated tonnage on the test bench before packing, and you get the video.
04
Shipment and start-up
Sea-worthy packing, documented rigging points and remote guidance for installation, first trial and operator training.

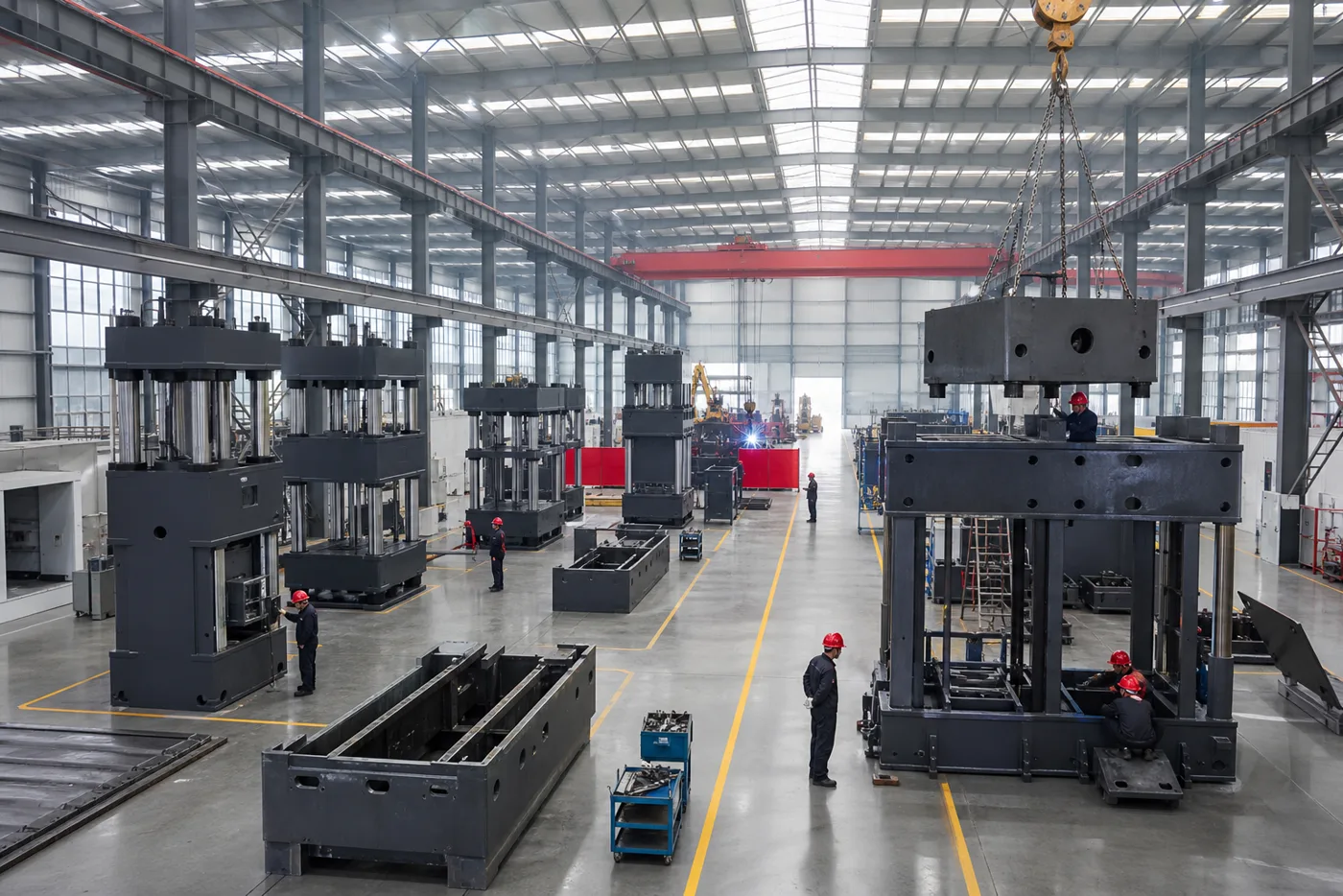

Built in Our Own Press Shop
HYDROFORGE machines press frames, hones cylinders and assembles power units under one roof. No trading-company markup, and no finger-pointing between suppliers when a question comes up years later.
- Frame plates cut, welded and stress relieved in-house
- Cylinders honed and tested on our own benches
- Every machine load tested at rated tonnage, with video sent before shipment
- Presses running in workshops across Asia, Europe and the Americas
Frequently Asked Questions
Straight answers to the questions press buyers ask us first. Anything else, send it over and an engineer replies.
Ask a QuestionA pump pressurizes oil and sends it into a cylinder, where it pushes a piston. Because force equals pressure times piston area, a modest pump can generate hundreds of tons at the ram. Valves control direction, depth and return speed, which is exactly the chain shown in our How It Works section above.
Price follows tonnage, bed size, stroke and the control package. A standard C-frame press costs a fraction of a four-column deep drawing line with servo control. Send your part drawing or the specification of the machine you are replacing, and we return an itemized quotation within one working day.
Anywhere a controlled force has to be held through a stroke: stamping and blanking sheet metal, deep drawing sinks and cookware, molding composites and rubber, pressing bearings and bushings, straightening shafts, and baling scrap. The frame type and tooling change with the job, the working principle stays the same.
Most stoppages trace back to seals, valves or the pump, all of which we keep on the shelf and ship worldwide. Our engineers diagnose remotely over video against the hydraulic circuit drawing supplied with your machine, and dispatch on site when hands are needed.
Get a Press Quotation
Tell us the part you press or the machine you are replacing. An engineer, not a sales script, reads every message and replies within one working day.
